該浮選機用于地質、冶金、建材、化工、煤炭、礦山選廠及院校科研單位試驗室攪拌、分離、擦洗、精選礦樣等。本產品由原地礦部唯一指定企業生產，執行行業標準。
The flotation machines are employed for agitation , separation, scrubbing and cleaning of samples in labs of geological, metallurgical, building material, chemical, coal, beneficiation plant of mine , institutions of higher learning and research institutions. The product is produced by the only manufacturer designated by the former. Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

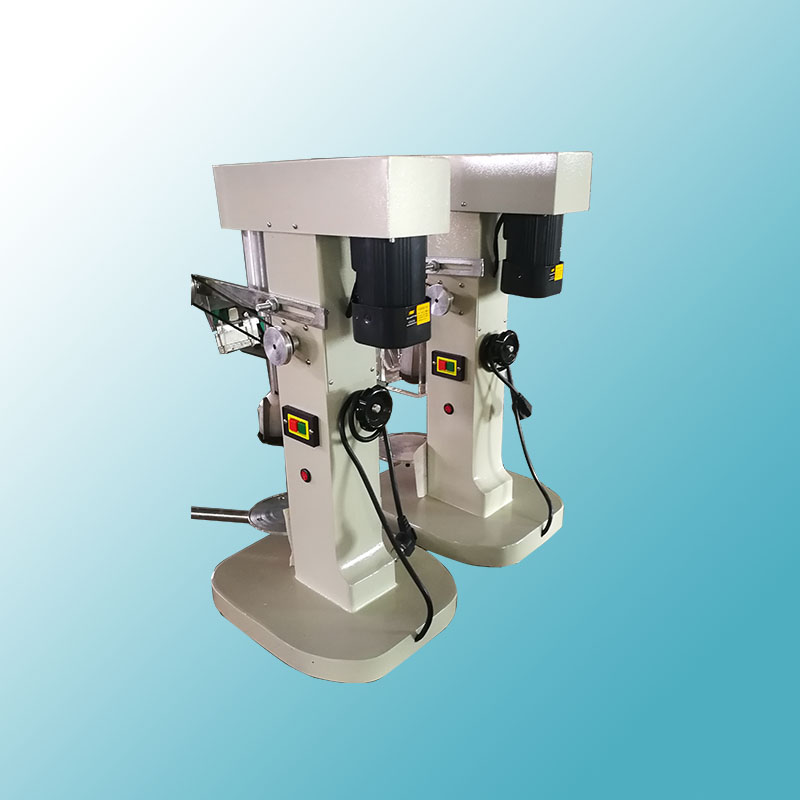

XFG型掛槽浮選機XFG Model Hanging Cell Flotation Machine
XFG型掛槽浮選機用于攪拌、擦洗、分離和精選少量礦樣等。該機具有浮選速度快和選別指標好等特點。
XFG Model Hanging Cell Flotation Machine is used for agitation separation, scrubbing and cleaning of minor samples with rapid speed of flotation and desirable separation indexes and other features.
| 型號規格 Model | 容量 Capa. | 選槽容積 Volume | 葉輪直徑 Impeller diameter | 葉輪轉速 Impeller speed | 給礦粒度 Feed size | 功率 Motor power | 質量 Weight |
| g | ML | mm | r/min | mm | w | kg | |
| XFG 5 | 5、15 25、35 | 20、60 100、140 | Φ20、Φ26、Φ30 | 1000-1850 | ≤0.2 | 90 | 15 |
| XFG 50 | 50、100 | 200 400 | Φ36、Φ48 | 1000-1850 | ≤0.2 | 90 | 16 |
| XFG 250 | 250、500 | 1000 2000 | Φ60、Φ64 | 1500、2000 | ≤0.2 | 250 | 25 |
| XFG | 1000 | 4000 | Φ80 | 900、1500 | ≤0.2 | 250 | 27 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
