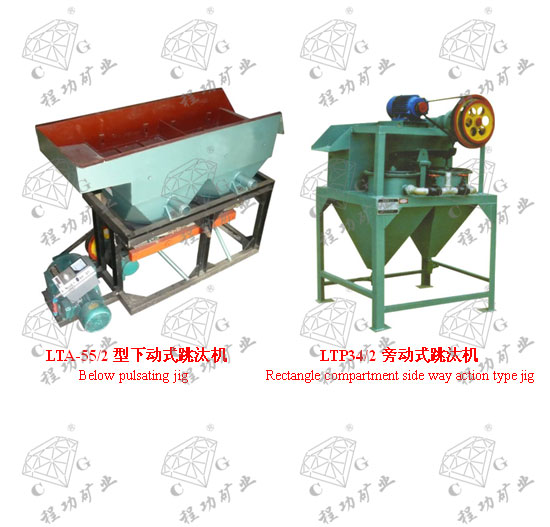

LTP型旁動隔膜跳汰機

LTP Rectangle Compartment Side Way Action Type Jig

旁動隔膜跳汰機，基本由Denver型跳汰機改制而成。其床層比較穩定，選別效果較好，隔膜與傳動裝置在跳汰機定一側，維修方便，但其占地面積和設備重量都比相同篩面規格的其他跳汰機大，動力消耗出略高，多用粗選及精選作業，適宜的分選粒度為12-0.1mm，廣泛用于選別、金、銀、鎢、錫、鉛、鋅、錳、鐵等重金屬礦。

Such side way action type jig is basically transformed from Denver jig. Its table layer is stable and produces good separation effects. The dissepiment and transmission device are fixed on one side of the jig which is easy for maintenance. However, it occupies larger area than other jigs of the same sifter specification and is heavier. It consumes relatively higher power. It is mostly used for fine screening or coarse screening. Its suitable separation size is 12-0.1mm. Such jigs are widely used to separate ores of heavy metal such as gold, silver, tungsten, tin, lead, zinc, manganese, and iron.

LTA型下動圓錐隔膜跳汰機

LTA Below Pulsating Jig

下動圓錐隔膜跳汰機的隔膜位于跳汰室槽體圓錐部分和可動錐之間，故動力消耗少，重產物排出暢通。缺點是床層松散較差，選寬級別礦石時，粗粒級的回收較差。

The dissepiment of below pulsating jig lies between the conic section of the jigging room’s trough and the movable cone. Therefore, it consumes little power and heavy products can be discharged smoothly. Its disadvantage is poor looseness of table layer. During the separation of wide ores, the recovery of rough grains is unsatisfactory.

俗稱米哈諾布爾型，一般用于6mm以下礦石的粗選作業，廣泛用于選別、金、銀、鎢、錫、鉛、鋅、錳、鐵等重金屬礦。

Such jig is commonly called Mihanuobuer which is normally used for the roughing of ores smaller than 6mm. Such jigs are widely used to separate ores of heavy metal such as gold, silver, tungsten, tin, lead, zinc, manganese, and iron.
