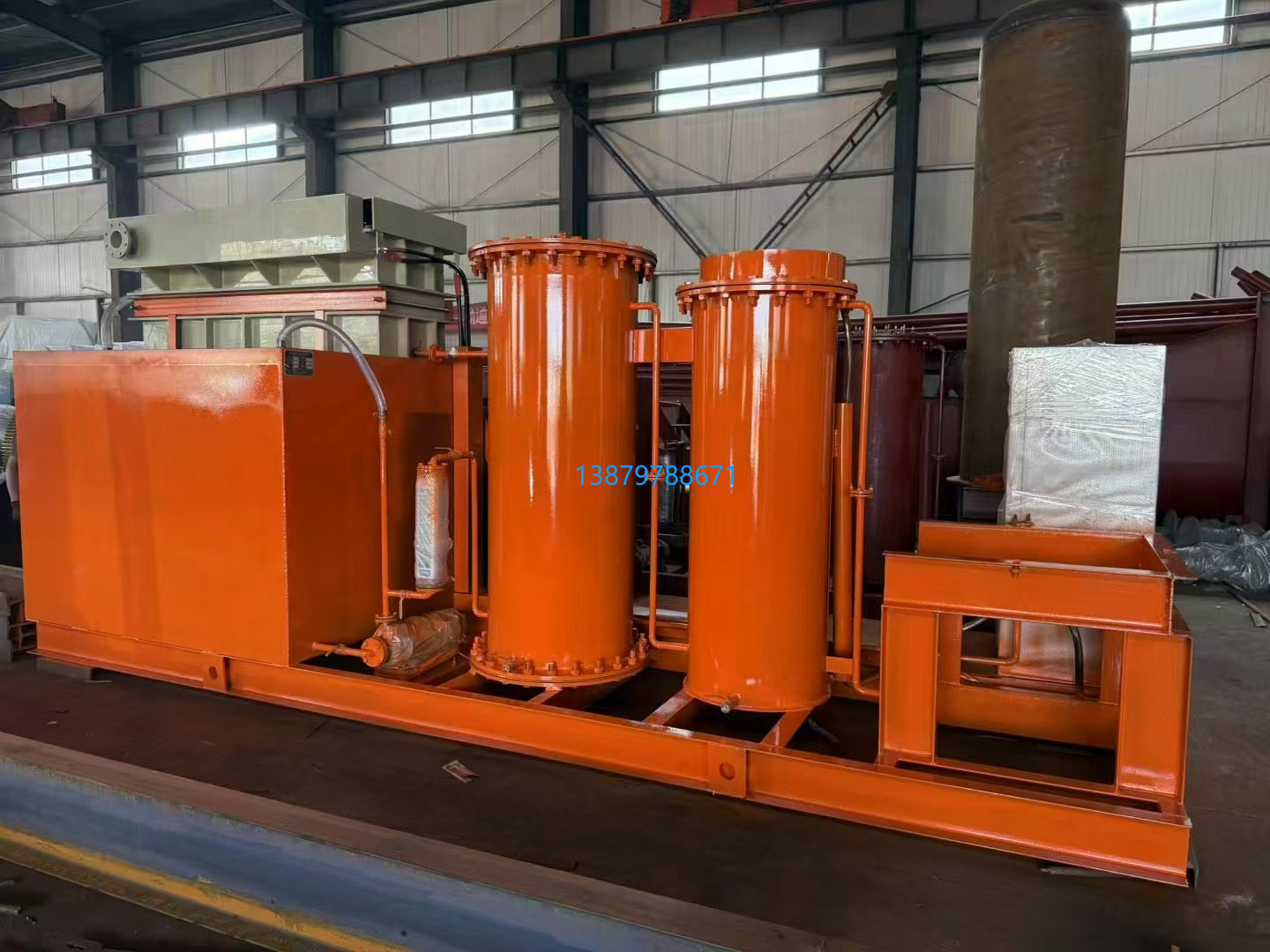

CGJ型解吸柱技術參數(shù) Parameter of the disadsorption column

解吸柱為直立筒式雙層壓力容器，內(nèi)膽材料為優(yōu)質不銹鋼，外殼為碳結鋼。

Desorption column is a vertical drum-like  double-layer pressure vessel with its interior made of high quality stainless  steel and its shell of carbon structural steel.

解吸柱上端設有進炭口,排液口,安全閥接口,壓力表接口,下端設有排炭口和進液口,進液口也兼有其它用途.接口與管路采用法蘭對按方式。

The desorption column is provided with  carbon inlet port, vent hole, relief valve connection and pressure gauge  connection at the upper part and carbon outlet port and liquid feeding port  which has another use at the lower part. The connection and pipeline is  connected with push-type flange.

解吸柱下端還設有人孔,特殊情況下可拆開觀察內(nèi)部情況。

At the bottom side of desorption column is  a manhole which can be used to dismantle the column in particular cases so as  to check the internal situation.

解吸柱出廠帶保溫，保溫鋼殼厚重堅固美觀耐腐，且可拆卸。外圓焊有四點安裝支座。

The desorption column  is provided with a solid, robust and good-looking corrosion-resistant steel  insulation shell before leaving the factory. . The outer circle is welded with four-point  mounting support.
